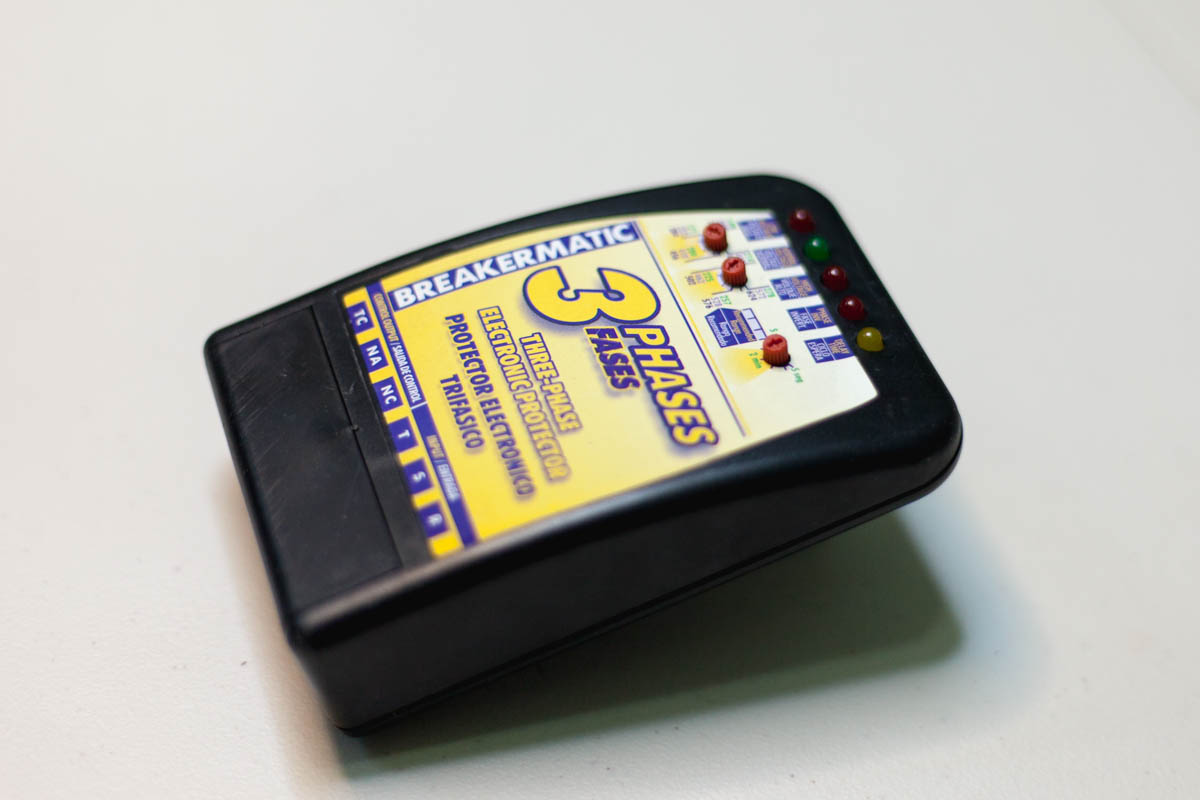

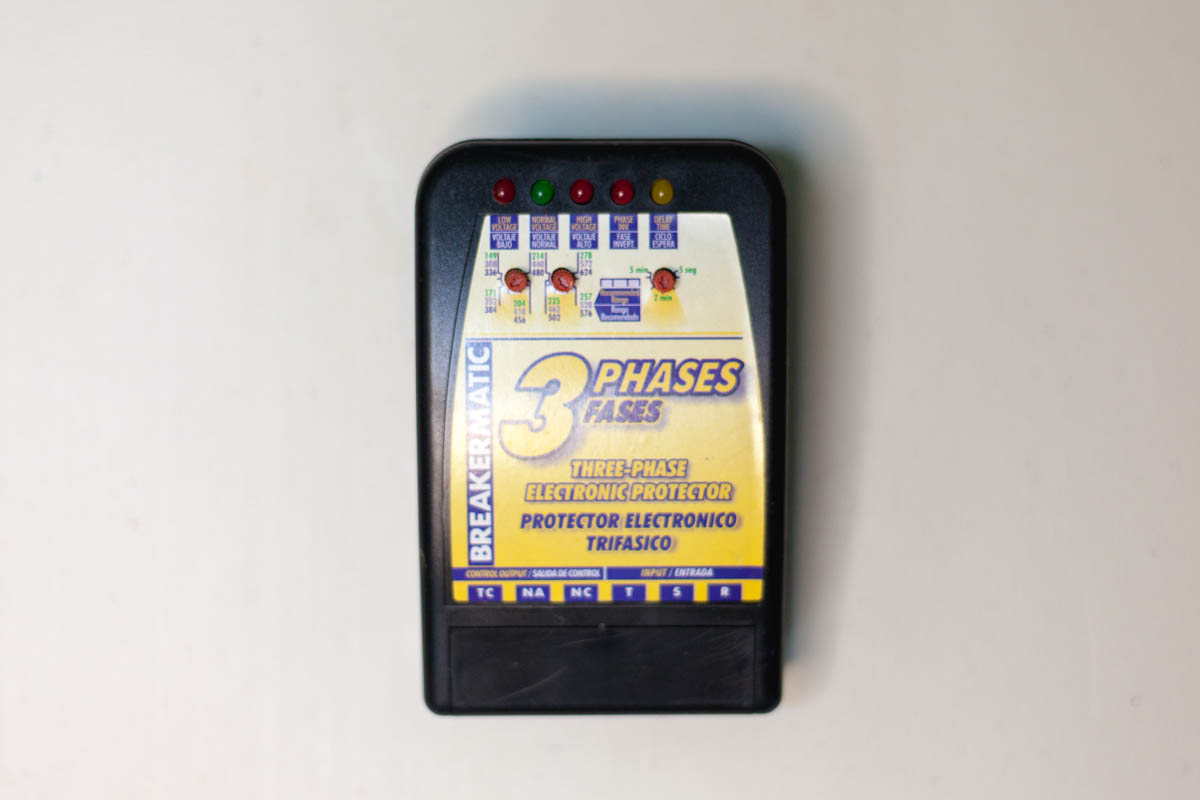

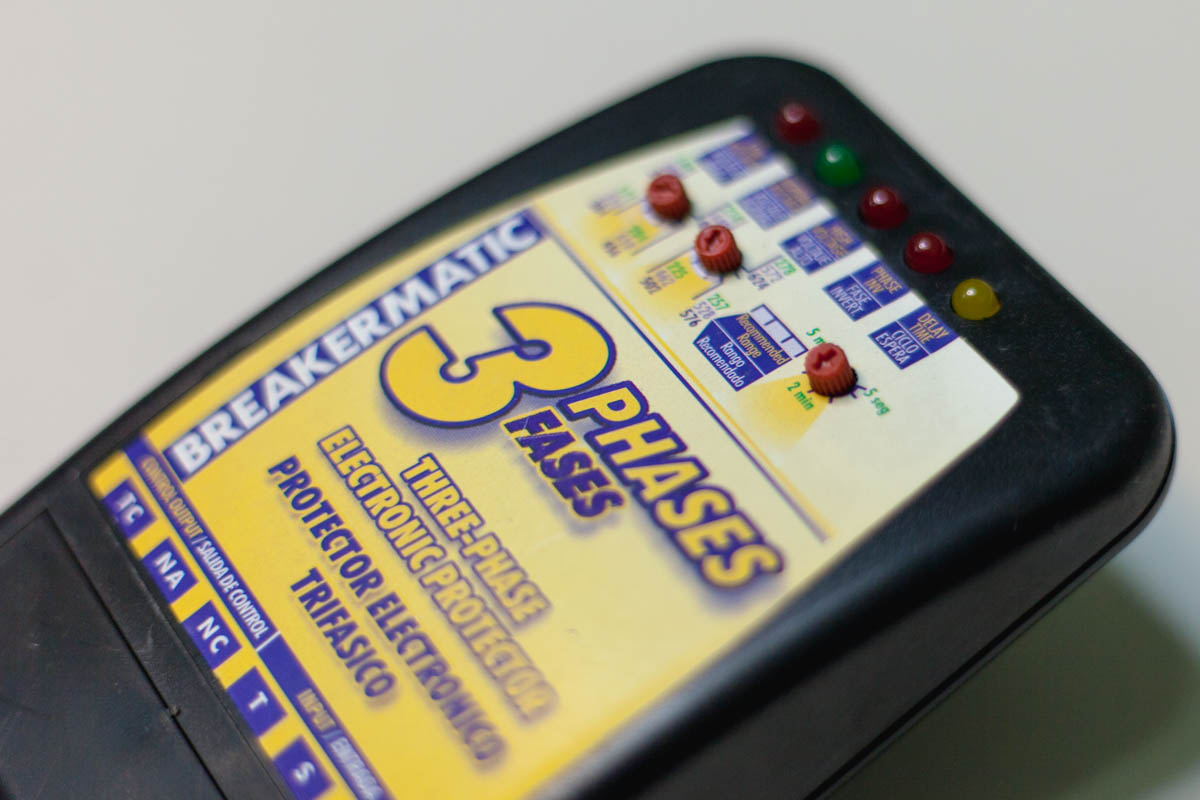

Breakermatic 3 Fases 208
Ideal For: Industrial Refrigeration, Air Conditioning, Elevators, Three-Phase Motors, Pumps, Control Panels, Lighting Systems, Etc.

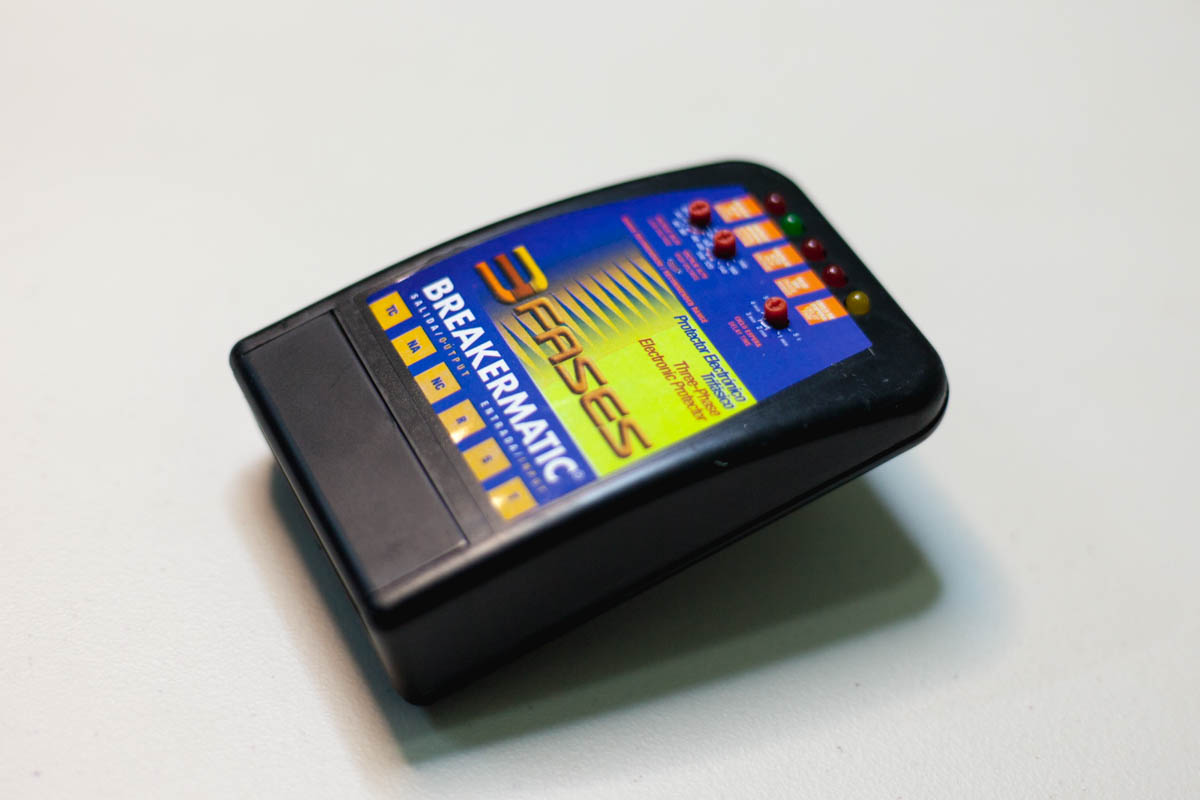

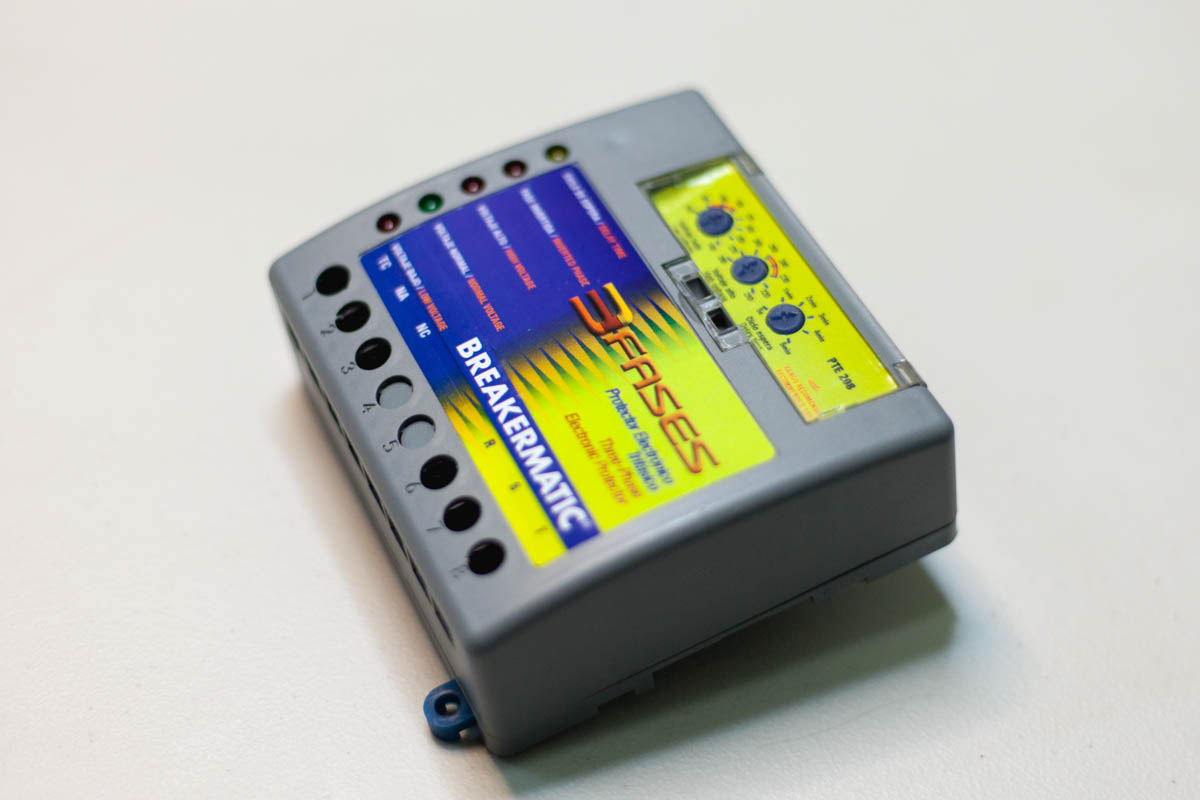

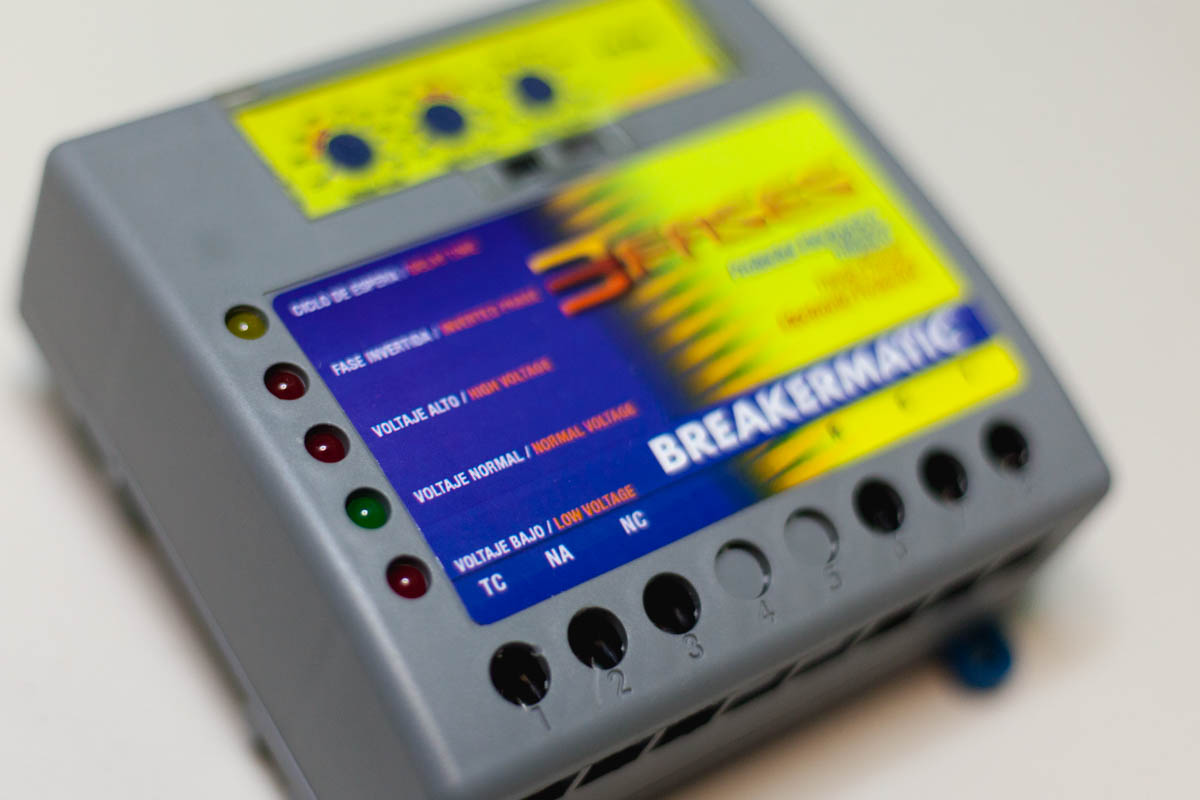

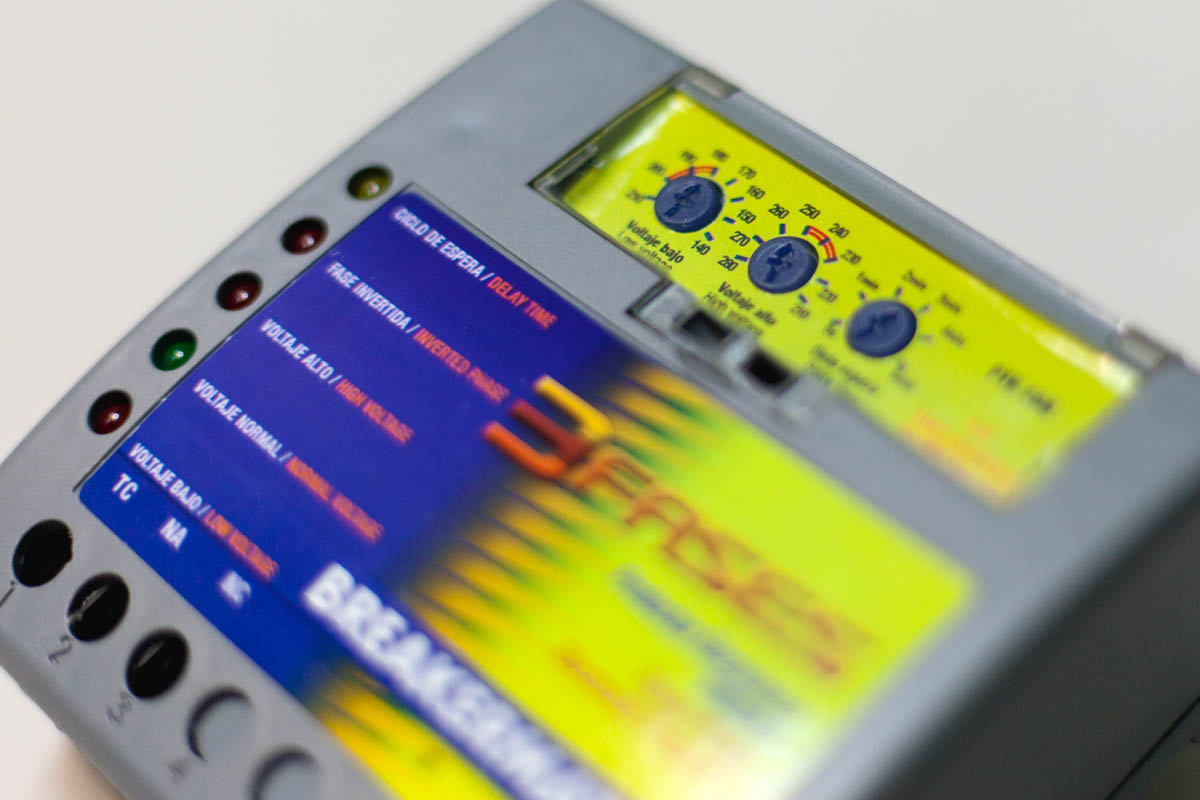

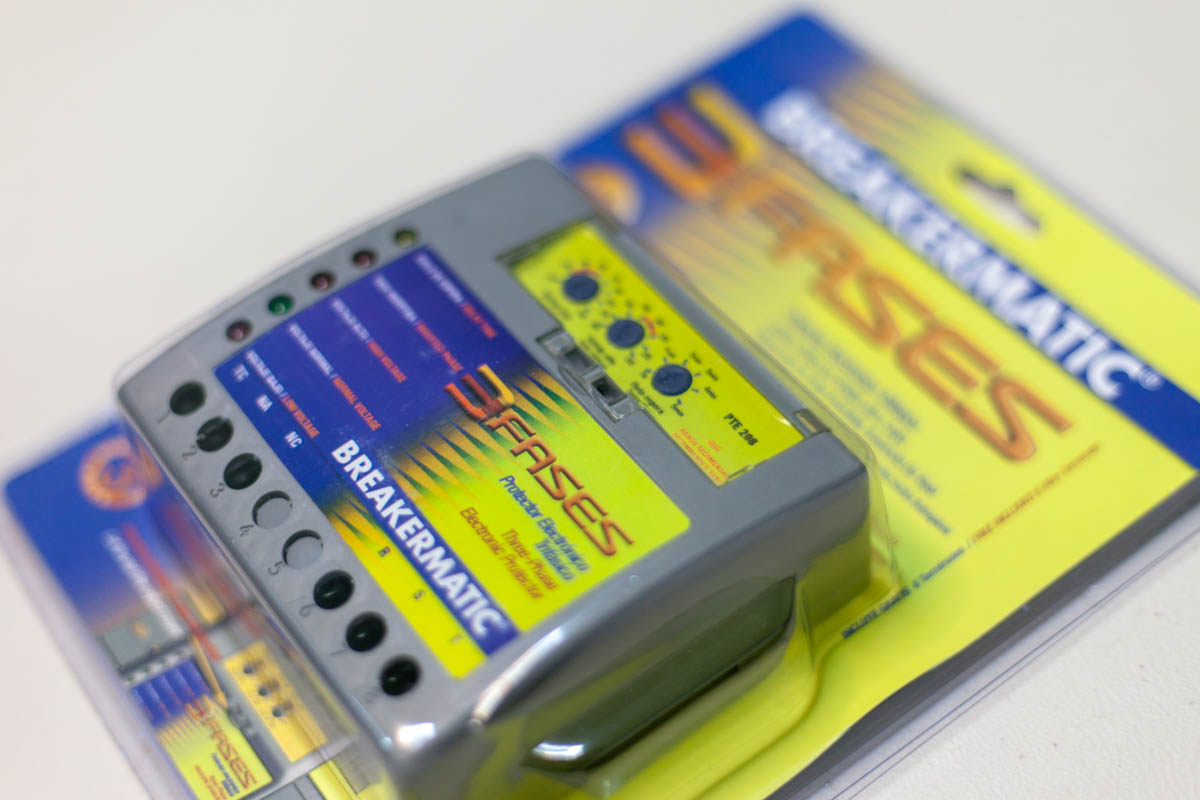

MODEL: PTE 208-AD0EST
With attached wiring terminal block.
6 FREE Wire Terminals included
Three-Phase Electronic Protector against Voltage Faults, Phase Sequence Inversion
INCLUDES: Start-Up Delay and Self-Protection against surge voltage
Additional Info

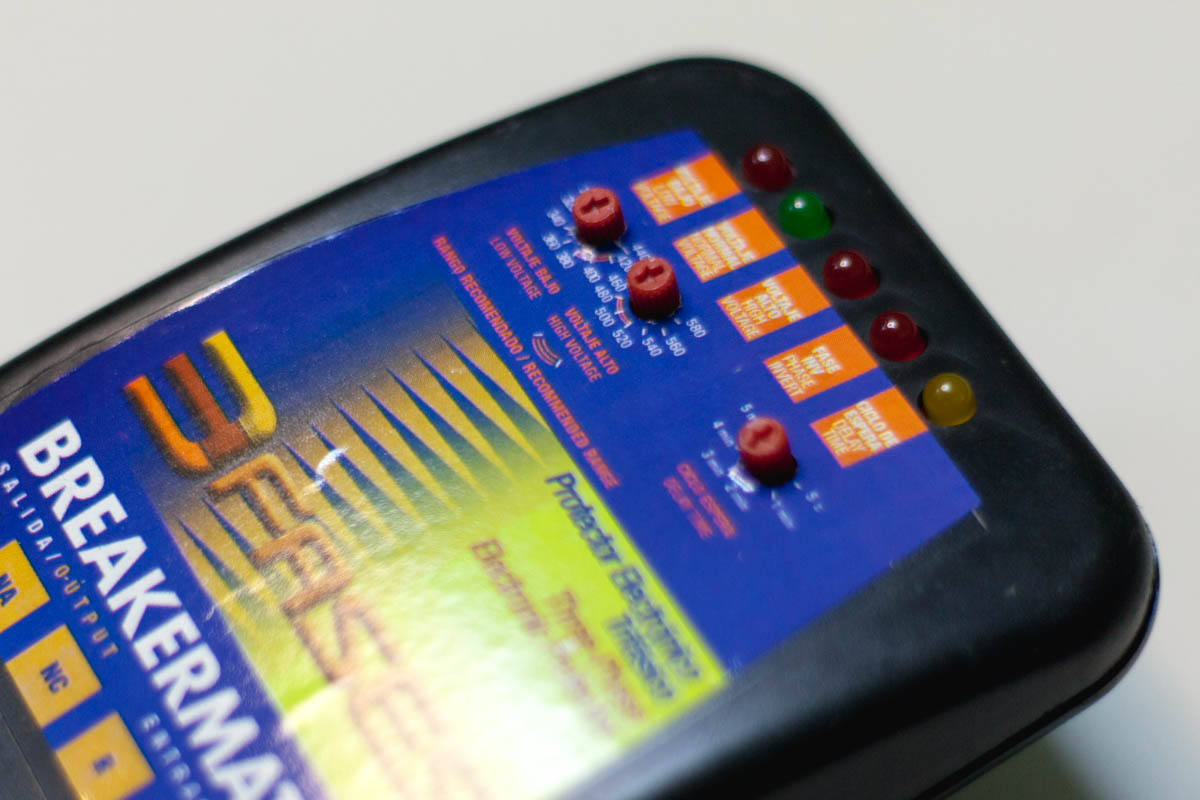

TECHNICAL SPECIFICATIONS
Model 208-220
LOW VOLTAGE THRESHOLD: Min: 140 // Max 210 // Recommended 180-200
HIGH VOLTAGE THRESHOLD: Min 210 // Max 280 // Recommended: 230-250
DELAY CYCLE: 5 Seconds // Max 300
INVERTED SEQUENCE DETECTION: Yes
Model 440
LOW VOLTAGE THRESHOLD: Min: 300 // Max 440 // Recommended 380-420
HIGH VOLTAGE THRESHOLD: Min 440 // Max 580 // Recommended: 480-520
DELAY CYCLE: 5 Seconds // Max 300
INVERTED SEQUENCE DETECTION: Yes
Model 480
LOW VOLTAGE THRESHOLD: Min: 340 // Max 480 // Recommended 420-460
HIGH VOLTAGE THRESHOLD: Min 480 // Max 620 // Recommended: 520-560
DELAY CYCLE: 5 Seconds // Max 300
INVERTED SEQUENCE DETECTION: Yes
OPERATION
Once the BREAKERMATIC 3 PHASES is installed as indicated, it is ready for operation. When the power is turned on, the protector will perform a delay cycle. After the delay is finished, the BREAKERMATIC 3PHASES will turn on the normal voltage indicator, closing the contactor coil circuit. Whenever one of the phase voltages deviates from the safe range the BREAKERMATIC 3PHASES will automatically disconnect the protected equipment. if an inverted rotation sequence is detected will also disconect the equipment instantaneously.
