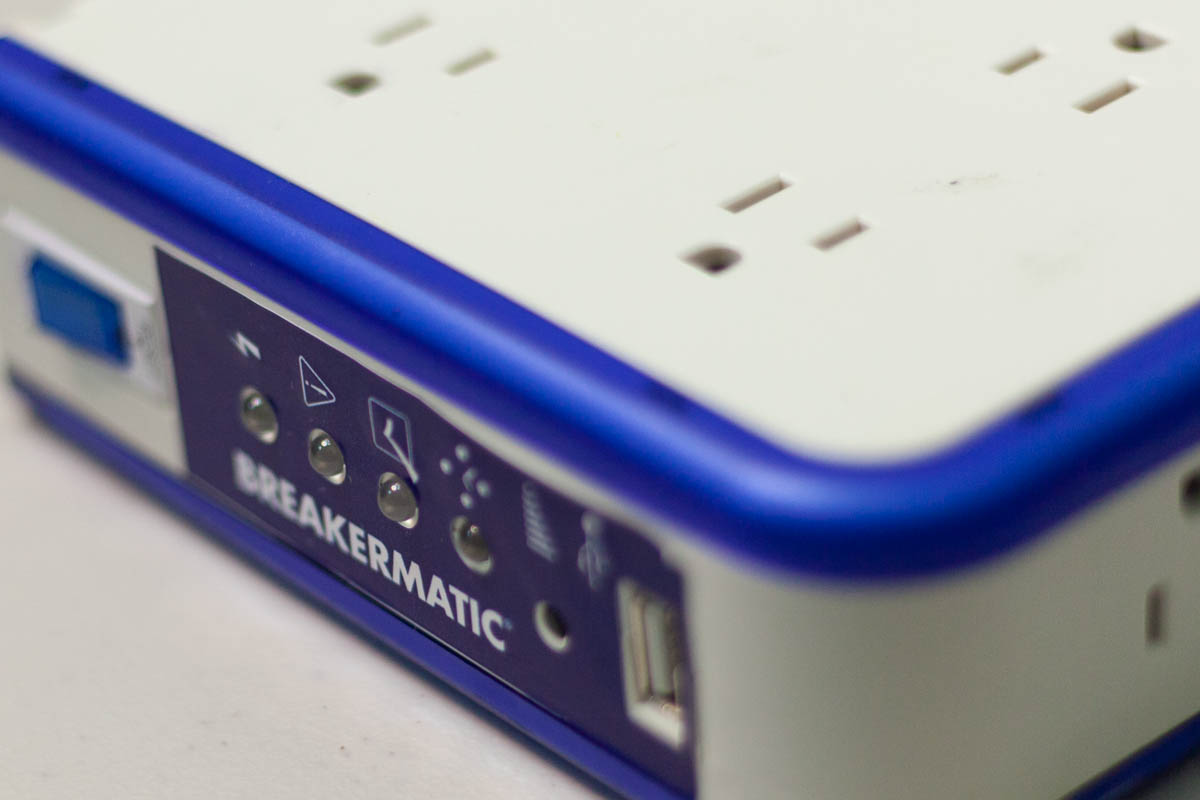

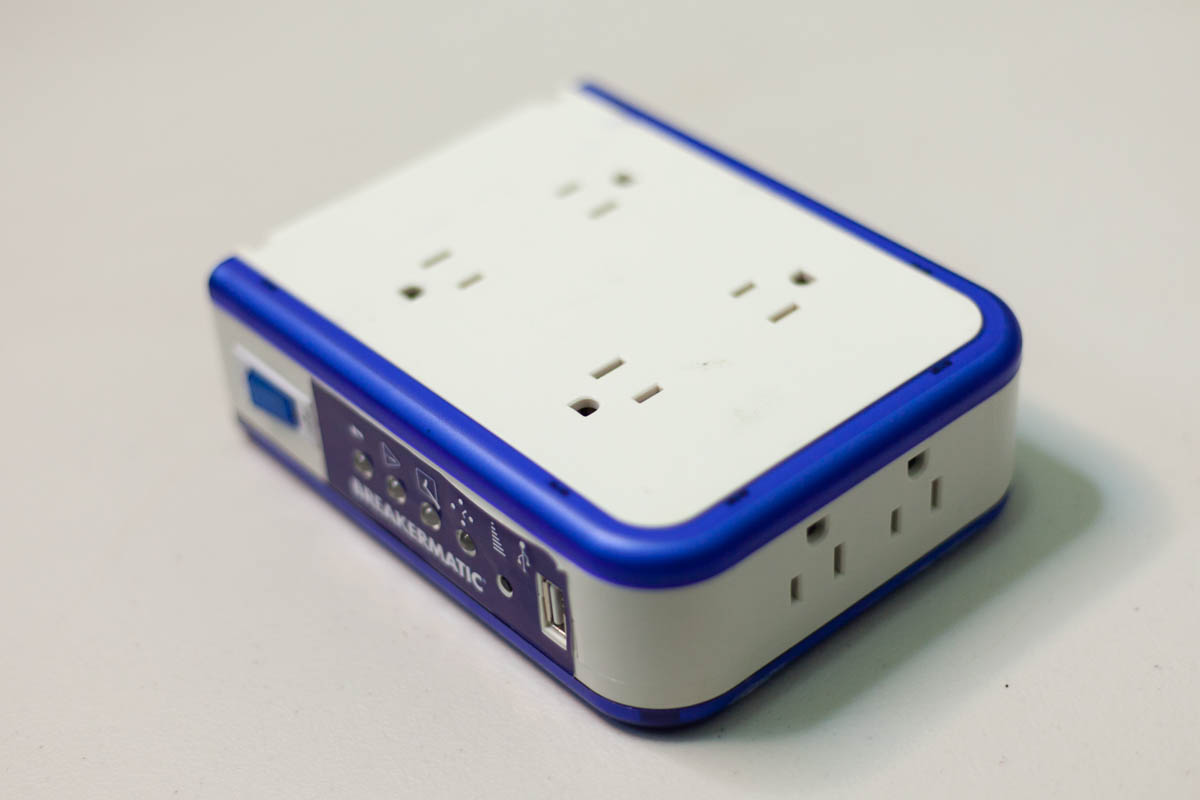

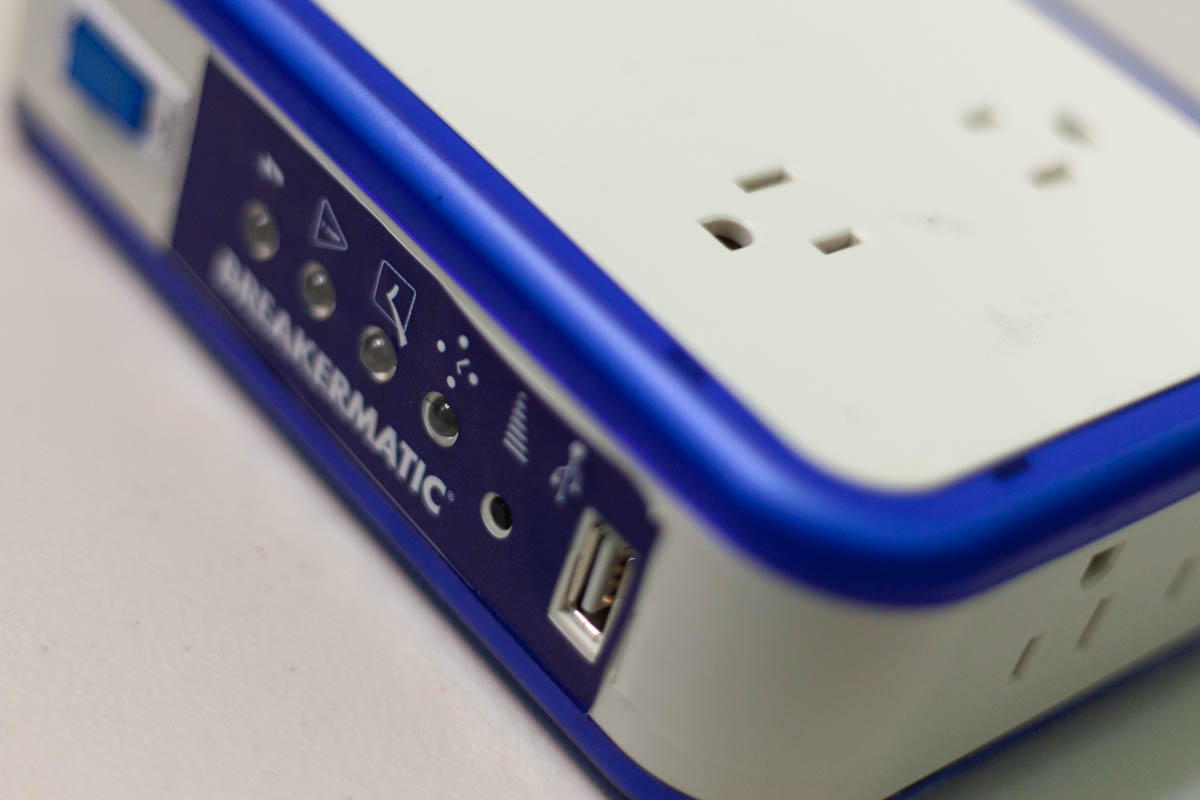

Connect Master 110 Vac Multi-Outlet Voltage and Surge Protector

$0.00

9 Outlets and 1 USB Charger

  • Vertical or Horizontal Setting
    180° base for vertical support

  • Compact and Easy to Install

  • Includes 4 feet Power Cable

  • The best device to integrate to all your electronic equipment such as
    PC, Laptops, Net books, Printers, DVD, Blue-Ray, TVs (LCD, Plasma, LED), Game Consoles, Cable Boxes, Audio Equipment and electronics in general.

Quantity:
Add To Cart

Additional Info

Electrical Characteristics

  • Current capacity: 15A. 1800W

  • 9 outlets (NEMA 5-15R)

  • 4 polarized and spaced front connections, allowing large transformer connection

  • 5 connections on the sides

  • Protection against high voltage, low voltage, voltage spikes and blackouts short supply line

  • USB Charger totally isolated from the power line, with protection short. Compatible with cell phones, smartphones or MP3 players

  • Switch protection against short circuits and overloads

  • 5 second delay cycle before the output power

  • Blue indicators of the state of operation of the eqipment, with adjustable brightness

  • Powered by IEC320-C14 connector, commonly used in electronic products

  • Power Chord 4 feet (1.2 meters), WEG #14 (15A peak), 105°C, IEC320-C13 connector and Plug NEMA 5-15

VOLTAGE SPECIFICATIONS

  • NOMINAL VOLTAGE: 120VAC

  • CUTOFF VOLTAGE: MIN 90VAC +/- 3%, MAX 140VAC +/-3%

  • MAXIMUM CURRENT: 15A

  • FREQUENCY: 60Hz

  • TIMEOUT: 15seg

  • SURGE SUPPRESSION: 270V / 3 x 158J

USB CHARGER SPECIFICATIONS

  • OUTPUT VOLTAGE: 5.1Vdc

  • MAXIMUM VOLTAGE: 5.6Vdc

  • LOAD CURRENT: Tip: 500mA / Max 750mA
